Pub display system

Full-screen 16:9 dark-theme signage board at /tv/
Designed for in-venue TV screens and blocks mobile viewports with a friendly message
Pulls live data from /api/events every 2 minutes
Uses the API response’s lastUpdated timestamp as the shared clock anchor for slideshow rotation and featured-event conflict rotation
Visible header clock is still device-local time
Caches the last successful /api/events payload in localStorage so reloads can repaint immediately from prior data
Polls /api/tv-build every minute and reloads only when the deployed TV build changes
TV_BUILD_ID is injected dynamically by the worker as window.__TV_BUILD_ID__; if the TV loads a cached HTML page, the build ID self-corrects from the first poll result
Hard-refresh fallback every hour via <meta http-equiv="refresh">
/tv/ can show a device-side debug overlay when TV_DEBUG_MODE = "1" is injected by the worker
The right-TV Now Playing composition has an explicit short-landscape layout for 720p/768p panels: title/artist/album retain a usable column, the cover stays on-canvas, and the QR remains a 220px scan target without overlapping metadata

Sources: public/tv/index.html, public/tv/script.js, public/tv/styles.css, public/tv/cinematic.css

Live screenshots

The TV is easier to understand from screenshots than from the DOM alone. These captures were taken from the live production page at pub.ihnyc-rc.org/tv on April 4, 2026.

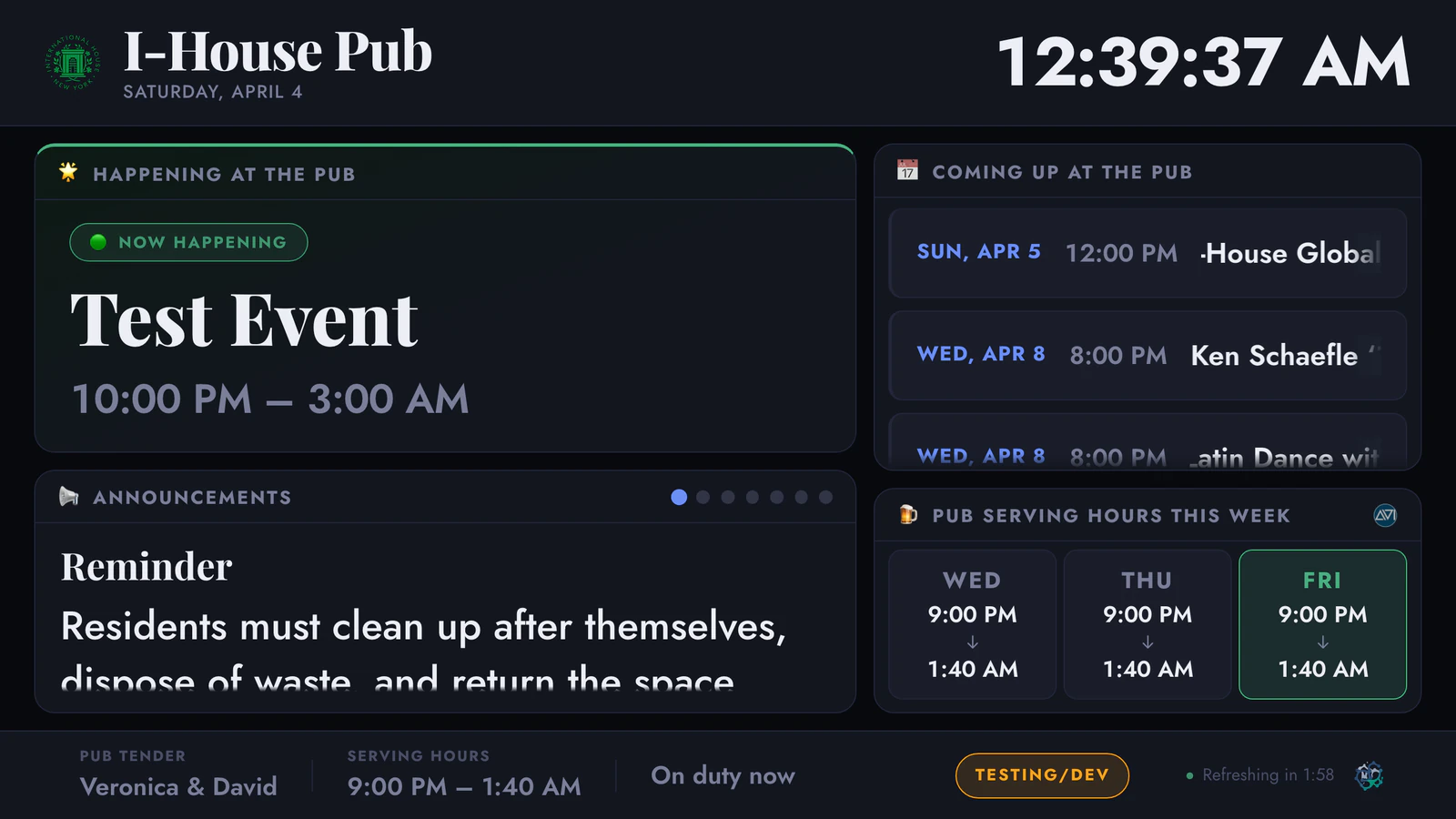

Combined live TV layout

Left column: Happening at the Pub for same-day featured activity and the mixed announcement / tender slideshow beneath it
Right column: Coming Up at the Pub for tomorrow-through-next-7-days events and Pub Serving Hours This Week for the current weekly service grid
Footer: current tender assignment, serving window, shift note, refresh countdown, and environment flag
In this live frame, Happening at the Pub is populated by an overnight event that began the previous evening and is still active after midnight

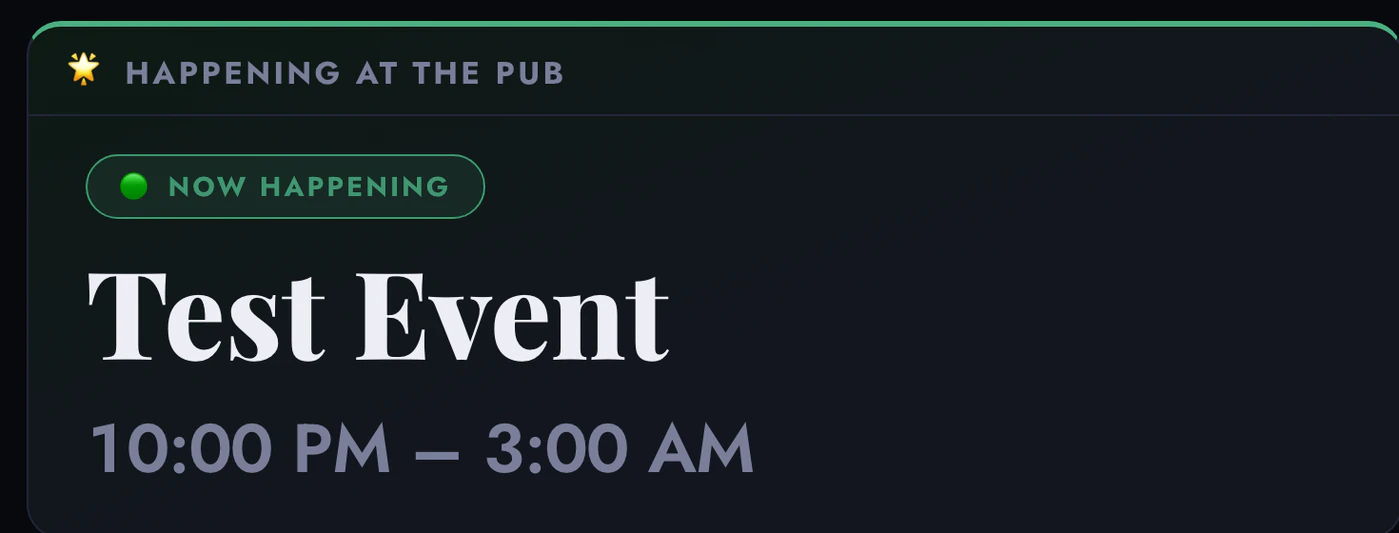

Current event panel

This panel is driven from todayEvents and now correctly includes overnight events that overlap the current Eastern calendar day
The green Now Happening badge is the highest-priority featured state and is what pub staff and guests should notice first

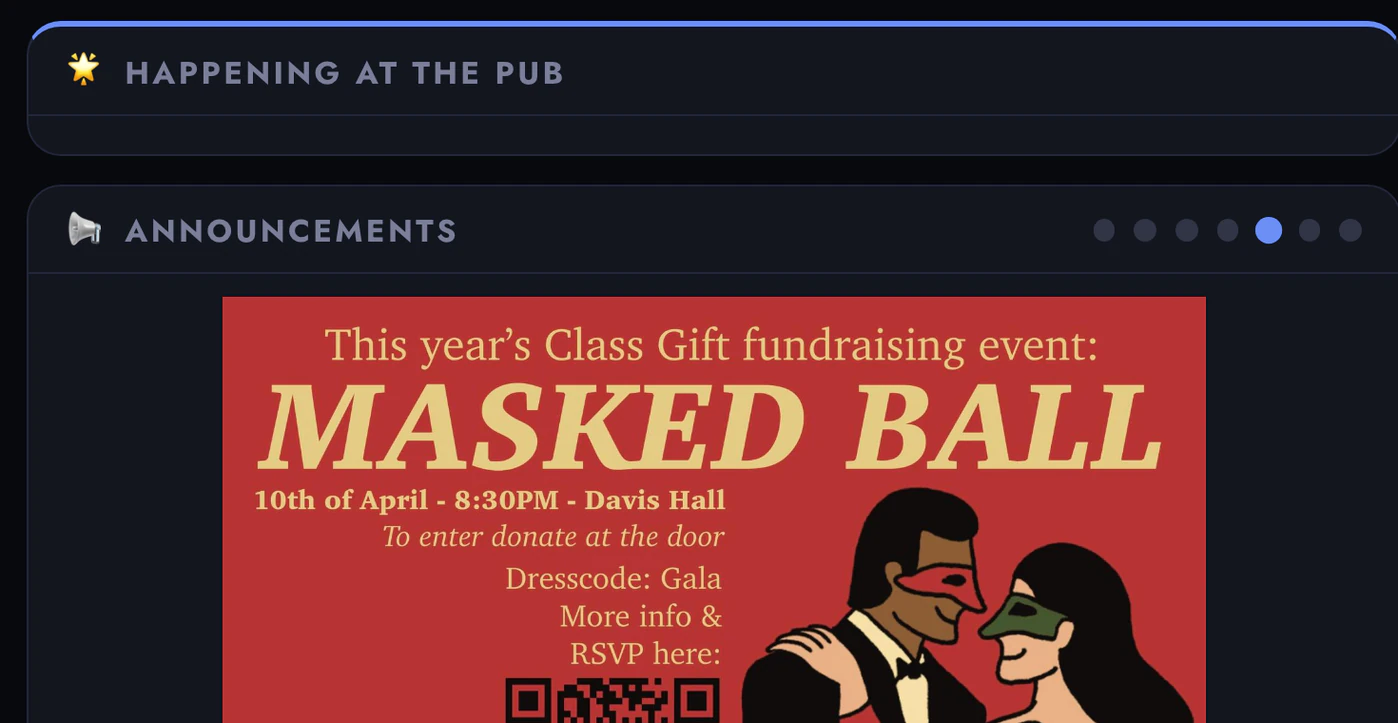

Announcement panel

Announcement slides can be text, image, or mixed image+text
The slideshow dots indicate the current slide and give manual navigation targets
When a full image announcement is active, the slide can use most of the lower-left panel

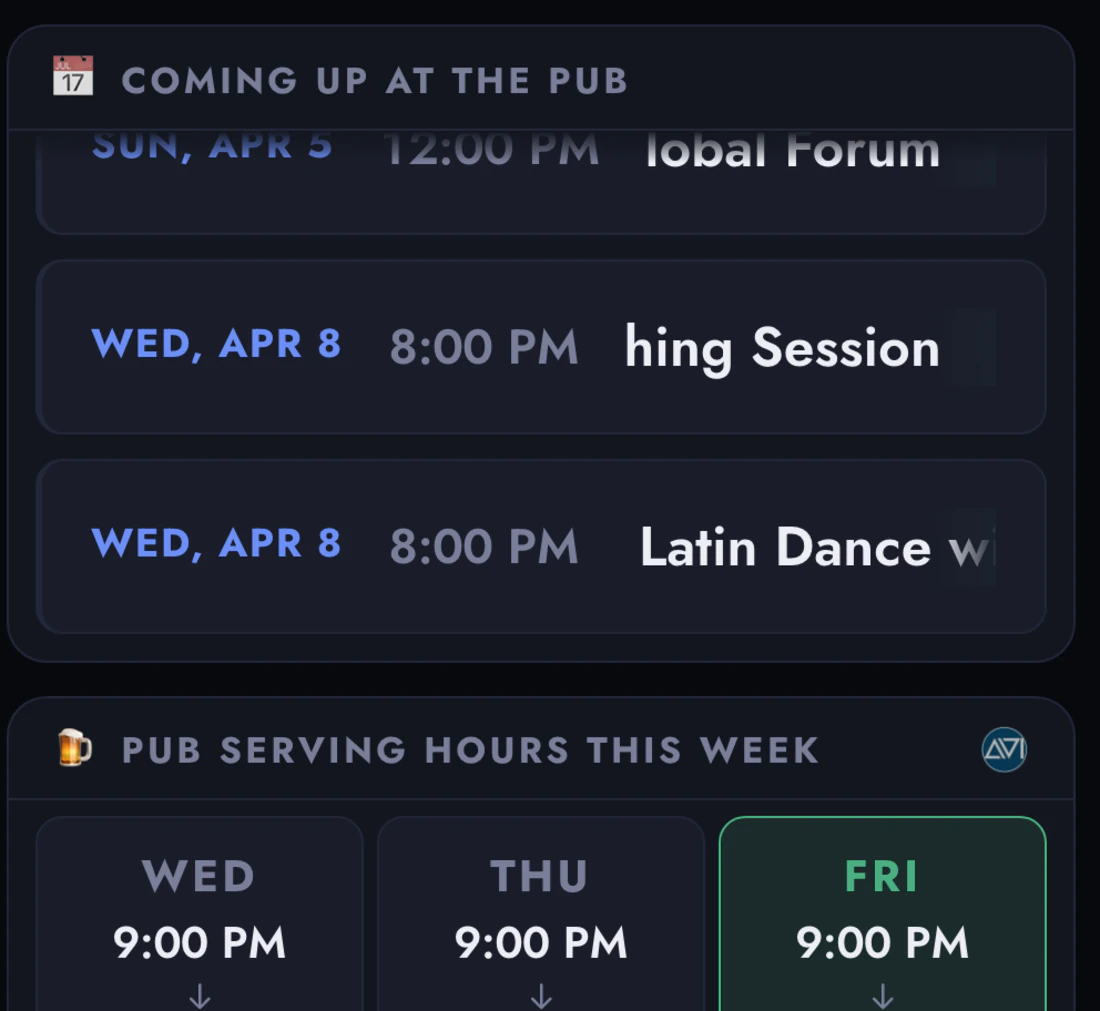

Upcoming events and serving-hours rail

Coming Up at the Pub is optimized for quick scanning of the next several pub events
Pub Serving Hours This Week highlights today’s service state while still showing the rest of the week
This right-side column is the highest-density “what is going on here?” area for people glancing at the TV

Layout

+-----------------------------------------------------+
| Header: logo, current date, live clock              |
+------------------------------+----------------------+
| Left column                  | Right column         |
| - Happening at the Pub       | - Coming Up at the   |
| - Announcements / tender     |   Pub                |
|   slideshow                  | - Pub Hours This     |
|                              |   Week               |
+-----------------------------------------------------+
| Footer: tender, hours, note, refresh, test flag     |
+-----------------------------------------------------+

Sources: public/tv/index.html, public/tv/styles.css (.tv-main, .tv-left, .tv-aside)

Event inclusion pipeline

The TV page does not query Notion directly. It renders whatever the worker returns from GET /api/events.

Both event arrays use the same base gate:

Include on Pub TV must be checked (location is no longer filtered — any location or none is accepted)
Events are sorted by actual start timestamp before the API response is returned

`todayEvents`

The worker computes todayISO in America/New_York
The event day starts at 12:00 AM Eastern
The worker queries a broad Notion window from todayISO through < todayISO + 2 days
It then narrows that result set to rows whose Event Start falls on todayISO in Eastern time

`weekEvents`

Uses the same pub-location and TV-include gates
Pulls rows with Event Start >= tomorrowISO and < todayISO + 8 days
That means calendar tomorrow through the next 7 days

Sources: worker.js (fetchFromNotion, eventOverlapsLocalDate, transformPage, transformWeekPage)

Event status logic

Each event is evaluated client-side using ISO timestamps from the API and the TV’s server-aligned clock.

Status	Condition	Badge
`Now`	`startMs <= now < endMs`	`Now Happening`
`Next`	Starts within 90 minutes	`Coming Up Next`
`Later`	Starts more than 90 minutes from now	`Coming Soon`
`Done`	End time has passed	Hidden

The Featured Event panel shows the highest-priority non-Done event (Now > Next > Later)
When multiple events share the same timeslot and status, the panel rotates among them every 15 seconds using the shared server-aligned clock
The Coming Up list filters out any Done rows before rendering
If an event has no usable end timestamp, the client falls back to start + 1 hour

Sources: public/tv/script.js (deriveStatusFromEvent, selectFeaturedEvent, renderWeekEvents)

Happening at the Pub

This panel renders from todayEvents only.

The client re-derives every event’s live status from startIso and endIso
It picks a single featured row using priority order Now → Next → Later
It renders the featured title, RC badge, time range, and location (if set)
It then lists the remaining non-Done same-day events under Also today, each with title, time, and location

If there is no non-Done same-day event, the panel stays visible and shows the empty-state message.

Sources: public/tv/script.js (withLiveStatuses, selectFeaturedEvent, renderFeaturedEvent)

RC classification badges

Events can carry one of two RC classification tags, shown as a badge before the event title.

Tag	Badge style	Meaning
`rc-direct`	Solid green	Organized by an RC member
`rc-affiliate`	Outlined accent	Resident-led, supported by the RC

Badge displays the RC logo (RC-transparent-background-logo.png)
Tag is extracted from the event row’s Source Email Subject by matching RC-Direct or RC-Affiliate

Sources: public/tv/script.js (rcBadgeHtml), worker.js (extractRcTag)

Announcements and Meet your Tender slideshow

The bottom-left panel is a slideshow that rotates through two types of slides:

Announcement slides
Tender profile slides

Slides auto-advance according to each slide’s configured duration, defaulting to 10 seconds. Navigation dots are shown inline in the panel heading bar, right-aligned after the slide heading text (e.g. “Announcements ●●○”). They are hidden when only one slide is present.

The slide position is no longer session-relative. Each TV computes the active slide from:

the shared slides payload
each slide’s duration
the API response’s lastUpdated timestamp

That keeps multiple TV sessions aligned even if browsers were opened at different times, as long as they are on the same payload.

Announcement slides

Can be text-only, image-only, or mixed image+text cards
Show a title (Name) and body text (Content, falling back to Name)
Can render an image from the announcement page’s Picture, Image, or PNG file property
Use Duration when present to override the default 10-second slide duration
Use the announcement priority field as a styling hint
Image URLs are rewritten to same-origin /api/image/announcement/:pageId routes before the frontend sees them
Those image routes can mirror Notion-hosted files into R2, so always-on TV sessions are less dependent on temporary Notion file URLs remaining valid
Pure image slides collapse the featured-event panel into a compact strip so the announcement image can use more vertical space
Fall back to a single empty-state message if the combined slides array is empty

Tender profile slides

Heading reads “Meet your Tender”
Show the tender’s first name only
Show the tender’s Picture through a same-origin /api/image/tender/:pageId route
Show a QR image only when the QR file property resolves successfully, via /api/image/tender-qr/:pageId
Do not currently show the tender bio, even if Bio exists on the Notion page
Do not generate a QR in the browser. The TV only renders the pre-generated Notion QR image file
Are only generated when Meet your Tender is checked on the tender page

Tender slide layout

The tender card (.slide-tender-layout) uses position: absolute with explicit inset values rather than flex sizing. Flex-based percentage-height resolution through the position: absolute slideshow chain was unreliable on certain TV rendering environments. The inset values map directly to .tv-slide’s edges and are deterministic on all screens.

QR code destination

The QR code displayed in the tender slide encodes the Short.io short URL (e.g. go.affectivetech.com/pub-pt3). That short URL’s target is the canonical profile URL /tenders/?tender=<id>. The older /tender/:id route still exists only as a compatibility redirect into the query-based directory URL.

Sources: public/tv/script.js (renderSlideshow, renderSlideMarkup), worker.js (buildSlides, fetchTenderInfoFromAssignmentPage)

Coming Up panel

Renders from weekEvents, which the worker defines as calendar tomorrow through the next 7 days
Same-day events are intentionally excluded
Events whose computed status is Done are removed before rendering
Long event titles animate with a horizontal marquee scroll
The panel is hidden entirely if no upcoming events remain

Sources: public/tv/script.js (renderWeekEvents, startWeekTitleScroll)

Pub hours grid

Seven-column grid showing Sunday through Saturday pub hours for the current week
Today’s column has three visual states:
- amber before today’s first shift segment starts, or between multiple segments
- green while a shift segment is active
- dimmed after the last segment has ended
Overnight segments like 9:00 PM - 1:40 AM are treated as ending on the next day when determining those states
Shift window math is evaluated explicitly in America/New_York, not the browser’s local timezone

Sources: public/tv/script.js (renderPubHoursWeek, getShiftStateForDate, getEffectivePubHoursDate)

Persistent footer bar showing the on-duty tender and live shift state.

Field	Content
Pub Tender	First name(s) of on-duty tender(s)
Serving Hours	Operational timeframe
Shift State	Live note with color and animation

Footer vs profile slide

The footer always shows the tender’s first name, regardless of whether Meet your Tender is checked. The checkbox only gates the profile slide in the slideshow panel.

Shift state transitions

State	Note text	Visual
`upcoming`	Upcoming shift	Normal
`setup`	Setting up	Amber
`active`	On duty now	Normal
`last-call`	Last call	Red, pulsing
`closed`	Cleaning / closed	Dimmed
`inactive`	No active shift right now	Normal

Sources: public/tv/script.js (renderPubTender), worker.js (deriveShiftNote)

Lives in the same footer strip as Pub Tender. Surfaces the song currently identified by the pub song-ID pipeline (the Raspberry Pi + Cloudflare Worker SSE stream). Ambient by design — hides entirely when the music is silent or the capture service is offline rather than showing a banner pub customers don’t need to read.

Field	Content
Album art	Cover art for the current track, ~56px square. Falls back to a monochrome music-note SVG when the song-ID backend didn’t return cover art.
Title	Larger type (~1.15rem) so it reads from typical pub viewing distance (10-15 ft).
Artist	Smaller type below the title.

Visibility states

Pi state	Music state	Footer slot
Online	Playing	Visible: album art + title + artist. Cross-fades (~200 ms) when the song changes.
Online	Silent (no music)	Hidden. The `/setlist/` page surfaces an explicit “Quiet right now” indicator; the TV stays calm.
Offline (no heartbeat for 90 s)	Any	Hidden. Customers don’t need to see “service offline” — staff have logs and the `/setlist/` page for that.

Source labels

The footer slot doesn’t render the source (“Spotify”, “Aux”, “DJ”) — that information lives on /setlist/ only. The TV intentionally stays minimal.

Sources: public/tv/index.html (#footer-now-playing), public/tv/styles.css (.footer-item--now-playing), public/tv/script.js (search “Pub “Now Playing” — SSE subscriber”). See Now Playing and setlist system for the full pipeline.

Refresh strategy

Mechanism	Interval	Purpose
Featured event re-evaluation	15 seconds, client-side	Keeps badges and same-timeslot rotation accurate between API calls
Soft data refresh	2 minutes via `/api/events`	Pulls fresh event, announcement, and tender-footer data
Build fingerprint poll	1 minute via `/api/tv-build`	Reloads only when deployed TV assets actually changed
Hard meta refresh fallback	1 hour	Safety net if JavaScript hangs completely
Countdown display	Live	Shows `Refreshing in M:SS` in the footer
Slideshow rotation	Duration-driven, default 10 seconds	Advances slides using the shared server-aligned cycle

Sources: public/tv/script.js (init, startRefreshCountdown), public/tv/index.html (<meta http-equiv="refresh">)

Debug mode

Set TV_DEBUG_MODE = "1" and open /tv/ to show a device-side overlay with:

/api/events fetch status
server timestamp used for sync
active slide index and type
image load vs error status
exact current image URL
viewport size, DPR, and user agent
unhandled JS/runtime errors

This mode exists specifically to debug embedded TV browsers that behave differently from desktop browsers.

Sources: public/tv/script.js (TV_DEBUG_MODE, installDebugHooks, startBuildPolling), worker.js (buildTvAssetResponse, handleTvBuildApi), public/tv/styles.css (.tv-debug-overlay)

iPad night board (`/ipad/`)

A separate landscape-only board at /ipad/ designed to sit on a bar-top iPad during pub events.

What it shows

Tonight’s Events — all todayEvents returned by the API, each row showing: status pill (Now / Next / Later / Done), event title, and time + location inline (7:00 PM – 9:00 PM · 📍 Pub)
On Shift Tonight — photo(s) and full name(s) of active pub tenders from pubTender.activeTenders

What it does not show

No hero/featured event panel
No announcement slideshow
No “Coming Up” week list
No board-status meta (refresh cadence, source, last sync)
No tender shift notes, hours, or detail cards

Layout

+---------------------------------------------+
| Logo  Tonight at the Pub  [date]     [clock] |
+----------------------------+----------------+
| Tonight's Events           | On Shift       |
|                            | Tonight        |
| [Now]  Trivia Night        |                |
|        8:30 PM · 📍 Pub   |  [photo]       |
|                            |  First Last    |
| [Next] Karaoke             |                |
|        10:00 PM            |                |
+----------------------------+----------------+

Event row ordering and states

Active events (Now, Next, Later) are always shown first
Done events are sorted to the bottom, faded to 45% opacity
If all events are done, the list collapses to a single “All wrapped up for tonight” message — no need to show a wall of faded rows

Event row accent

The active Now row gets a green left-border accent, a subtle green tint, and a slow breathing glow animation so bar staff can spot the current event without reading the pill
All rows carry a 3px left border; only Now has a colored one

Refresh

Data: every 60 seconds via /api/events?window=1
Clock: every 10 seconds client-side
Status re-evaluation: every 15 seconds client-side
Hard page reload: every 5 minutes via <meta http-equiv="refresh">
Portrait orientation on a touch device shows a rotate prompt and hides the board

Rotation blocker

If the iPad is held in portrait, a full-screen overlay asks the user to rotate. The board content is hidden until landscape orientation is restored.

Sources: public/ipad/index.html, public/ipad/script.js, public/ipad/styles.css

Shipped: split into `/bar-tv-left` + `/bar-tv-right`

Shipped 2026-05-19 → 2026-05-21

Both bar-TV routes are live in production. The two pub TVs used to both load /tv and render identical content — because they sit side-by-side on the same wall, that wasted ~50% of the available pixels. The split gives each TV a focused subset of panels at full 1920px scale.

Allocation:

LEFT TV (/bar-tv-left) — Happening at the Pub + Announcements / tender slideshow at full 1920px width. Now Playing carried in the footer.
RIGHT TV (/bar-tv-right) — Coming Up at the Pub + Pub Serving Hours This Week arranged as a side-by-side 2-column grid (grid-template-columns: 1.15fr 1fr), with the right-rail-stage rotation (overview / flyer / Now Playing hero / takeover-tender slide).
Both TVs — header + footer carried over identically. Now Playing footer line surfaces on both.
Takeover — both TVs swap on event-takeover-pre / event-takeover-live body class. LEFT mosaic spans the full LEFT viewport; RIGHT swaps to the tender slide.

Shipping history:

Phase 0 — vitest+miniflare test framework bootstrap (predecessor PR).
Phase 1 — two HTMLs carved out, buildTvAssetResponse extended, Now Playing SSE gated on element-presence, vw-based typography scale per body class, worker routes wired (PRs #54–#58 era).
Phase 2 — Now Playing hero card on /bar-tv-right as a right-rail-stage slide (PR #59 + #62 album-art-proxy fix).
Phase 3 — side-by-side Coming Up + Pub Hours grid on the right TV with footer-readability bumps (PR #63).
Phase 4 — Pub Serving Hours cards widened, heading restructured with Open Wed–Fri subtitle, arrow glyph swap ↓ → → (PR #64). See 2026-05-21-widen-pub-hours-cards.

/tv continues to work unchanged as a dev/laptop preview indefinitely.

See 2026-05-20-bar-tv-split for the original full design, locked decisions, typography scale, empty-state behavior, and implementation order.

IHNYC Platform Docs

Documentation

Pub display system

Table of Contents

Live screenshots

Layout

Event inclusion pipeline

`todayEvents`

`weekEvents`

Event status logic

Happening at the Pub

RC classification badges

Announcements and Meet your Tender slideshow

Announcement slides

Tender profile slides

Coming Up panel

Pub hours grid

Pub tender footer

Shift state transitions

Now Playing footer slot

Visibility states

Source labels

Refresh strategy

Debug mode

iPad night board (`/ipad/`)

What it shows

What it does not show

Layout

Event row ordering and states

Event row accent

Refresh

Rotation blocker

Shipped: split into `/bar-tv-left` + `/bar-tv-right`

Table of Contents

IHNYC Platform Docs

Documentation

Pub display system

Table of Contents

Live screenshots

Layout

Event inclusion pipeline

todayEvents

weekEvents

Event status logic

Happening at the Pub

RC classification badges

Announcements and Meet your Tender slideshow

Announcement slides

Tender profile slides

Coming Up panel

Pub hours grid

Pub tender footer

Shift state transitions

Now Playing footer slot

Visibility states

Source labels

Refresh strategy

Debug mode

iPad night board (/ipad/)

What it shows

What it does not show

Layout

Event row ordering and states

Event row accent

Refresh

Rotation blocker

Shipped: split into /bar-tv-left + /bar-tv-right

Related

Table of Contents

`todayEvents`

`weekEvents`

iPad night board (`/ipad/`)

Shipped: split into `/bar-tv-left` + `/bar-tv-right`
